TECHNICAL INFO:

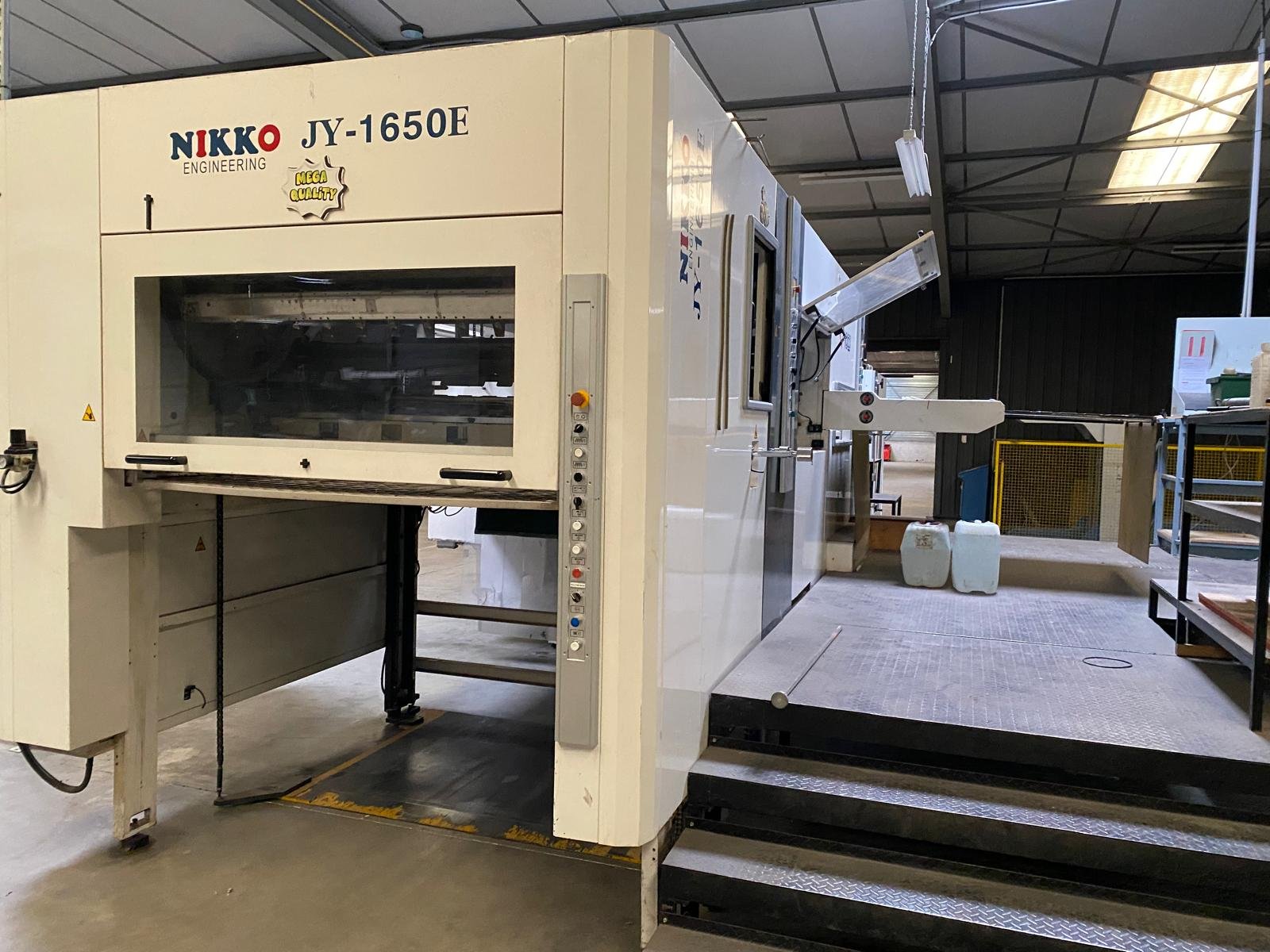

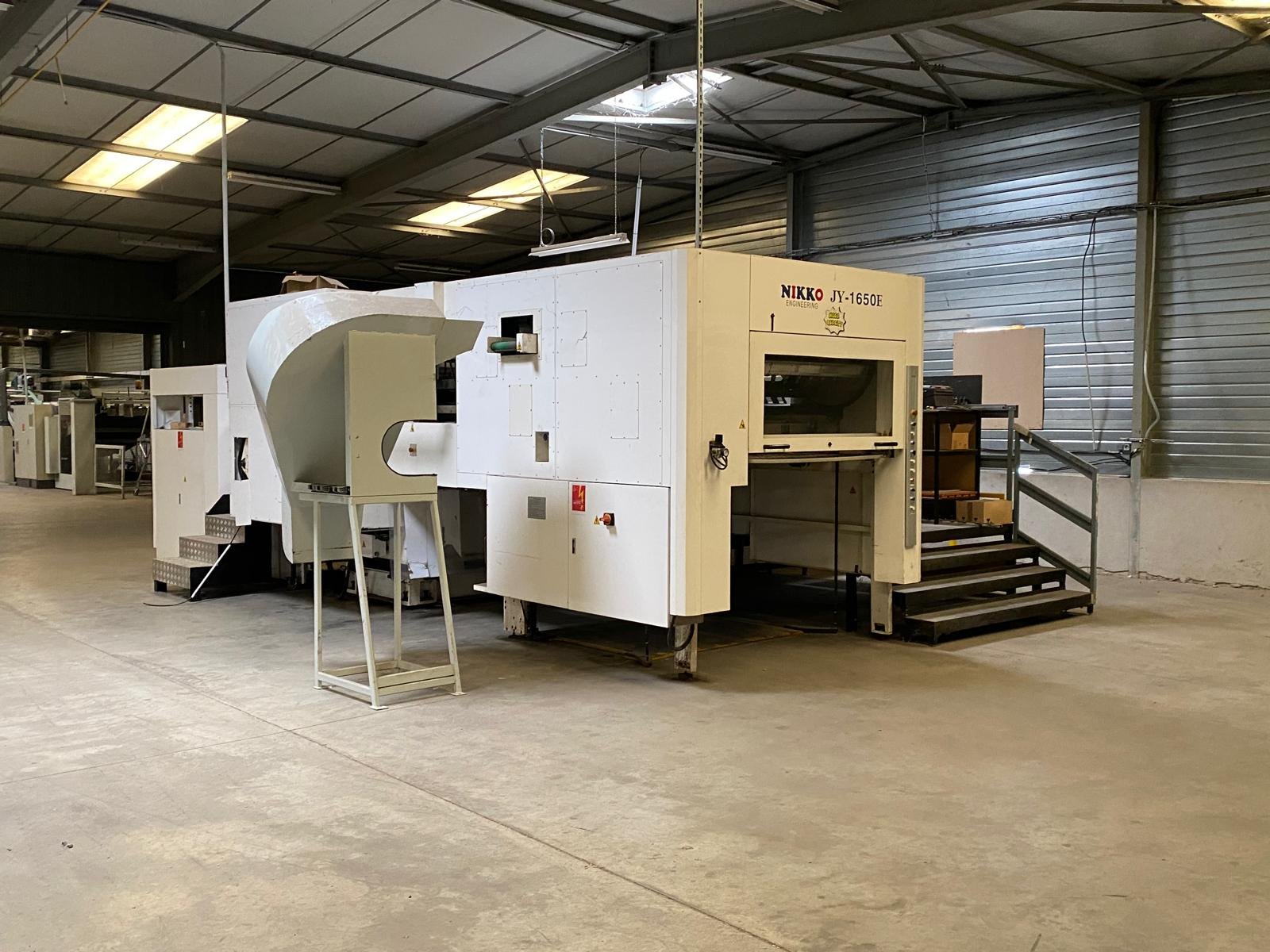

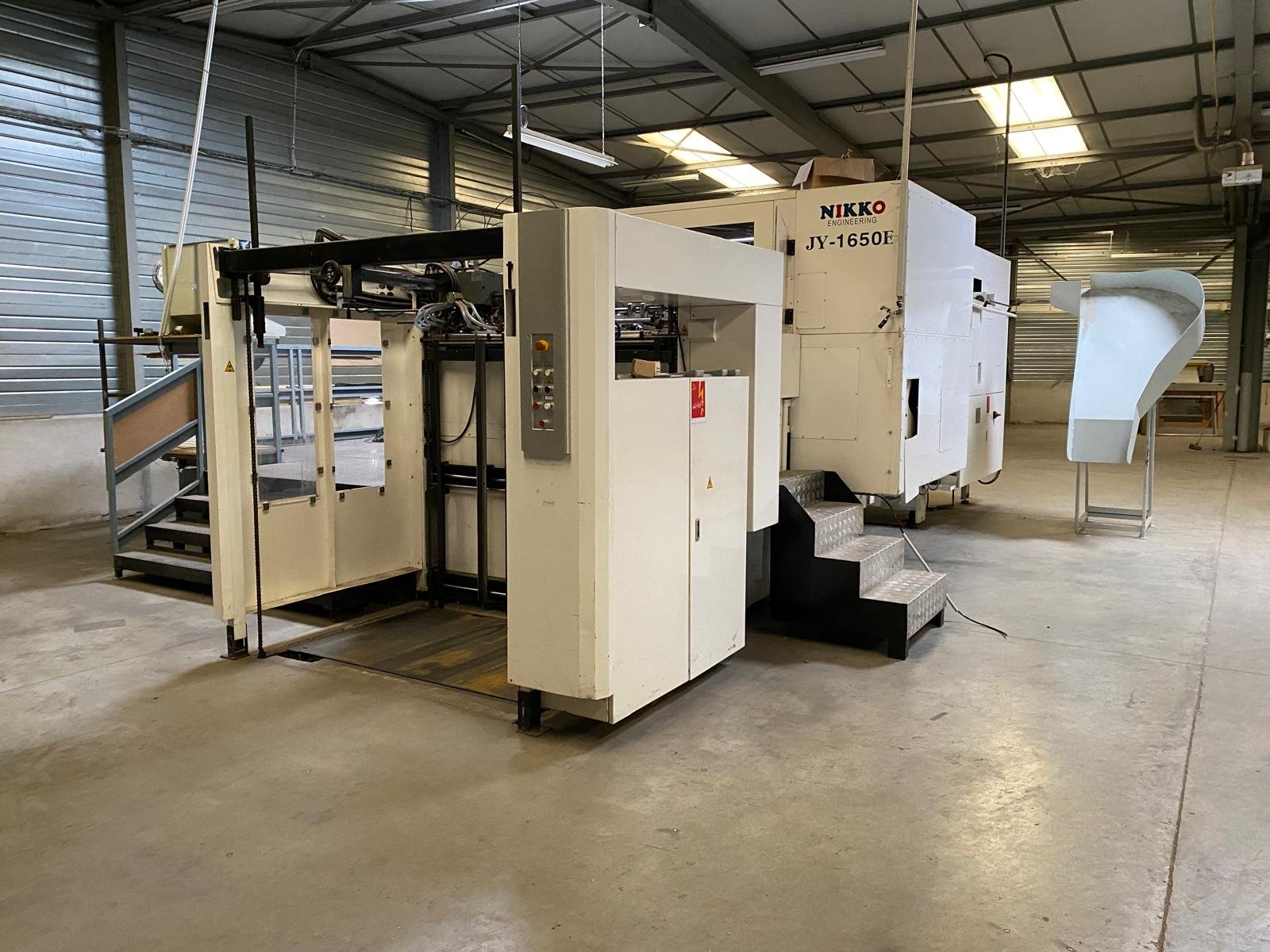

Automatic Die Cutting Machine
Yoco Nikko JY1650E
Year 2015
JY-1650E with top-fed feeder technical data
Maximum sheet size: 1650 X 1200mm
Minimum sheet size
680 X 520mm
Maximum diecutting size
1630 X 1180mm
Inside chase size
1660 X 1215mm
Diecutting plate size
1680 X 1186mm
Minimum gripper waste
12mm (distance from first knife to paper edge)
Maximum pressure 400 tons
Paper thickness Cardboard 350g/m²
Corrugated paper thickness
1～7mm
Maximum speed: 5000 sheets/hour
Cutting knife height 23.8mm
Max pile height at feeder 1900mm
Max pile height at delivery
1400mm
Main motor power 22kw
Total power 40 kw
Dimension(incl.platform and pre-loader)
10570 X 6000 X 2810mm
Weight (excluding feeder 30 tons
that was developed through a collaboration with Japanese companies, including Nikko Engineering Co.This machine is designed for diecutting, stamping, and creasing, and the "1650" indicates a maximum sheet size of 1650 mm.The 2015 model year likely designates a specific version of this machine.Machine Type: An automatic flatbed diecutter for diecutting and stamping.YOCO, a company that partnered with Japanese manufacturers like Nikko Engineering.indicating the manufacturing year of this particular machine.Key features: Features include a diecutting pressure of up to 400 tons, a centerline registration system, and a touch-screen interface for easy setup and monitoring.Other specifications: The machine is equipped with a feeder system (either top or lead edge), a diecutting section with high-pressure capabilities, and a stripping and delivery section,
In Production.
